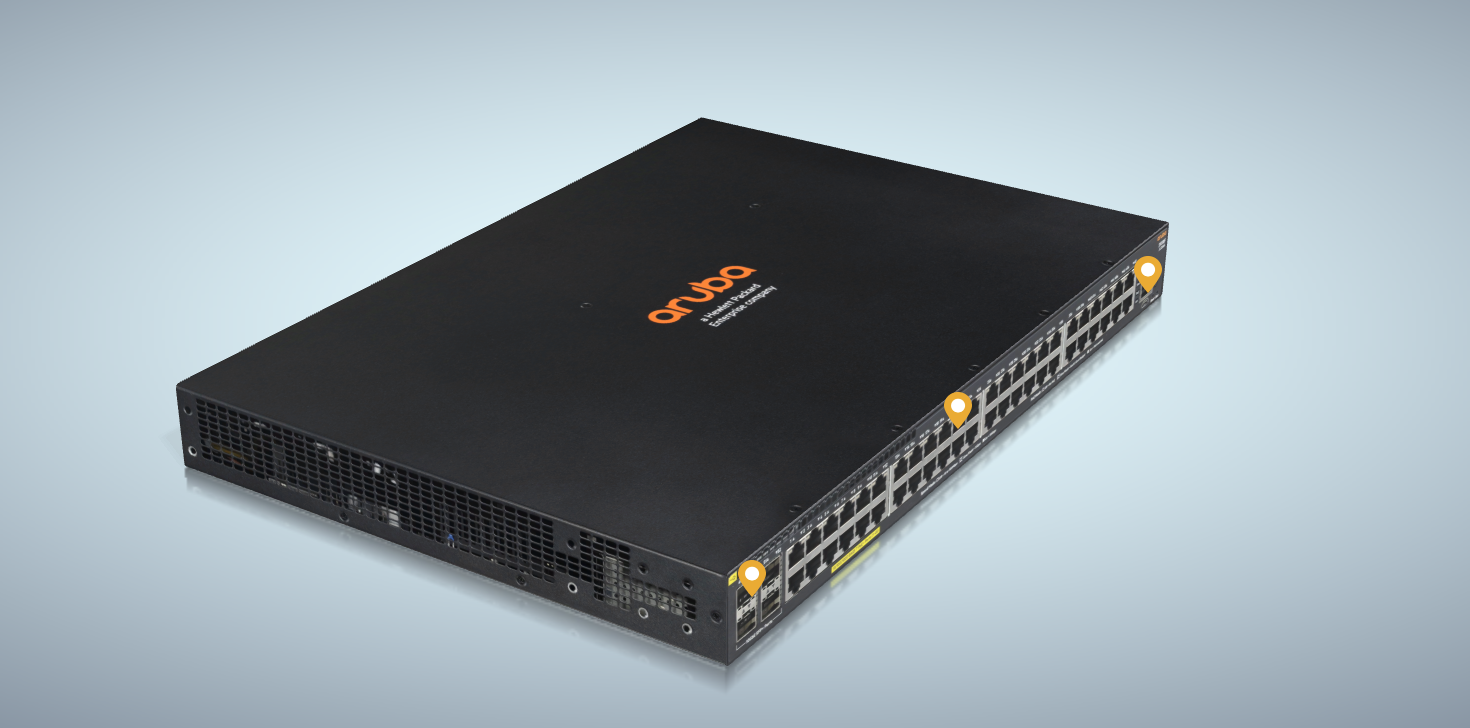

HPE Aruba Networking 2930F 48G 4SFP Switch (JL260A) |
||
|
I/O ports and slots |
48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
|
|
4 SFP |
||
|
Additional ports and slots |
1 dual-personality (RJ-45 or USB micro-B) serial console port |
|
|
Physical characteristics |
Dimensions |
17.42(w) x 9.7(d) x 1.73(h) in (44.25 x 24.63 x 4.39 cm) (1U height) |
|
Weight |
6.83 lb (3.10 kg) |
|
|
Memory and processor |
Dual Core ARM Cortex @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB |
|
|
Performance |
1000 Mb Latency |
< 3.8 µs (64-byte packets) |
|
Throughput |
up to 77.4 Mpps |
|
|
Switching capacity |
104 Gbps |
|
|
Routing table size |
2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP |
|
|
MAC address table size |
32768 entries |
|
|
Environment |
Operating temperature |
32°F to 113°F (0°C to 45°C); up to 5000 Feet, - 0C to 40C (32F to 104F) up to 10000 Feet |
|
Operating relative humidity |
15% to 95% @ 104°F (40°C), noncondensing |
|
|
Non-operating/Storage temperature |
-40°F to 158°F (-40°C to 70°C); up to 15000 Feet |
|
|
Non-operating/Storage temperature |
15% to 95% @ 149°F (65°C), noncondensing |
|
|
Environment |
Acoustic |
Power: 54.1 dB, Pressure: 40.2 dB |
|
Airflow direction |
Side-to-side |
|
|
Electrical characteristics |
Maximum heat dissipation |
100.0 BTU/hr (105.5 kJ/hr) |
|
Voltage |
100 - 127 / 200 - 240 VAC, rated |
|
|
Current |
0.9/0.6 A |
|
|
Maximum power rating |
46.6 W |
|
|
Idle power |
32.7 W |
|
|
Frequency |
50/60 Hz |
|
|
Electrical characteristics |
Notes: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. |
|
|
Safety |
UL 60950-1, 2nd Edition; UL 62368-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009 +A2:2013; EN 62368-1: 2nd Edition; CSA 22.2 No. 60950-1-07 2nd; IEC-62368-1: 2nd Edition; EN 60825-1:2014 / IEC 60825-1:2014 Class 1 |
|
|
Emissions |
EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438 |
|
|
Immunity |
Generic |
EN 55024:2010/CISPR 24 |
|
ESD |
IEC 61000-4-2: |
|
|
Radiated |
IEC 61000-4-3 |
|
|
EFT/Burst |
IEC 61000-4-4 |
|
|
Surge |
IEC 61000-4-5 |
|
|
Immunity |
Conducted |
IEC 61000-4-6 |
|
Power frequency magnetic field |
IEC 61000-4-8 |
|
|
Voltage dips and interruptions |
IEC 61000-4-11 |
|
|
Harmonics |
IEC/EN 61000-3-2 |
|
|
Flicker |
IEC/EN 61000-3-3 |
|
|
Management |
HPE Aruba Networking Central; AirWave; IMC – Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP |
|
|
Services |
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office. |
|
