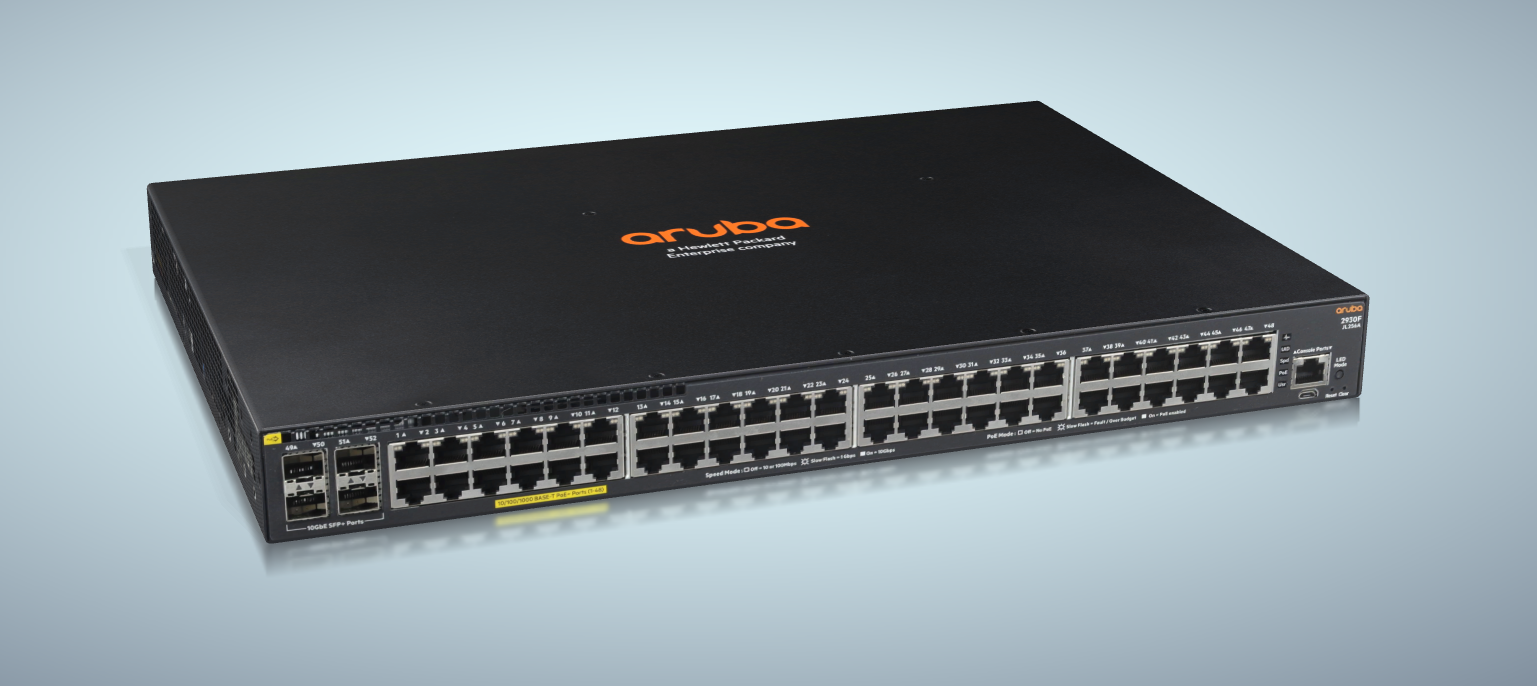

HPE Aruba Networking 2930F 48G PoE+ 4SFP+ 740W Switch (JL558A, JL558ACM) 1 |
||
|
I/O ports and slots |
48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports PHY-less |
|
|
Additional ports and slots |
1 dual-personality (RJ-45 or USB micro-B) serial console port |
|
|
Physical characteristics |
Dimensions |
17.42 (w) x 12.77 (d) x 1.73 (h) in (44.25 x 32.42 x 4.39 cm) (1U height) |
|
Weight |
10.56 lb (4.79 kg) |
|
|
Memory and processor |
Dual Core ARM Cortex A9 @ 1016 MHz, 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB |
|
|
Performance |
1000 Mb Latency |
< 3.8 μs (64-byte packets) |
|
10Gbps latency |
< 1.6 μs (64-byte packets) |
|
|
Throughput |
up to 112.0 Mpps |
|
|
Switching capacity |
176 Gbps |
|
|
Routing table size |
2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP |
|
|
MAC address table size |
32,768 |
|
|
Environment |
Operating temperature |
32°F to 113°F (0°C to 45°C); up to 5,000 Feet, 0°C to 40°C (32°F to 104°F) up to 10,000 Feet |
|
Operating relative humidity |
15% to 95% @ 104°F (40°C), noncondensing |
|
|
Environment |
Non-operating/Storage temperature |
-40°F to 158°F (-40°C to 70°C); up to 15,000 Feet |
|
Non-operating/Storage temperature |
15% to 95% @ 149°F (65°C) |
|
|
Acoustic (power and pressure) in decibels |
Power: 55.1 dB, Pressure: 41.1 dB |
|
|
Airflow direction |
Side to side |
|
|
Electrical characteristics |
Power efficiency certifications |
80plus.org certification: Gold |
|
Maximum heat dissipation |
420.9 BTU/hr (444.1 kJ/hr) |
|
|
Voltage |
100-127 / 200-240 VAC, rated |
|
|
Current |
9.2 / 4.9 A |
|
|
Maximum power rating |
980W |
|
|
Idle power |
49.9W |
|
|
PoE power |
740 W PoE+ |
|
|
Frequency |
50/60 Hz |
|
|
Notes: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. |
||
|
Safety |
UL 60950-1, 2nd Edition; UL 62368-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009 +A2:2013; EN 62368-1: 2nd Edition; CSA 22.2 No. 60950-1-07 2nd; IEC-62368-1: 2nd Edition; EN 60825-1:2014 / IEC 60825-1:2014 Class 1 |
|
|
Emissions |
EN 55032:2012/CISPR 32 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438 |
|
|
Immunity |
Generic |
EN 55024:2010/CISPR 24 |
|
ESD |
IEC 61000-4-2 |
|
|
Radiated |
IEC 61000-4-3 |
|
|
EFT/Burst |
IEC 61000-4-4 |
|
|
Surge |
IEC 61000-4-5 |
|
|
Conducted |
IEC 61000-4-6 |
|
|
Power frequency magnetic field |
IEC 61000-4-8 |
|
|
Voltage dips and interruptions |
IEC 61000-4-11 |
|
|
Harmonics |
IEC/EN 61000-3-2 |
|
|
Flicker |
IEC/EN 61000-3-3 |
|
|
Management |
HPE Aruba Networking Central; AirWave; IMC – Intelligent Management Center; Command-line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP |
|
|
Services |
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office. |
|
|
Notes:
|
1 All hardware SKUs can be managed by HPE Aruba Networking Central. Central Managed (CM) SKUs are used for simplified ordering within U.S. and Canada only. Append "CM" to the indicated SKU #: (e.g., JL261ACM to order the JL261A). Requires an active Central license and end-user information consistent with the Central license purchase. Applicable accessories with a valid "CM" suffix should also be placed on the same order. |
|
