HPE Aruba Networking CX 4100i 12-port 1GbE (8-port Class 4 POE and 4-port Class 6 POE) 2-port SFP+ DIN Mount Switch (JL817A) |
||
|
Description |
4x ports 100M/1G BaseT Class 6 PoE ports supporting up to 60W per port 8x ports 100M/1G BaseT Class 4 PoE ports supporting up to 30W per port |
|
|
2x 1/10G SFP ports |
||
|
Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W) |
||
|
1x USB-C Console Port 1x RJ Console 1x USB Type A Host port 1x Alarm socket 2x DC power socket |
||
|
Power Supplies |
Field replaceable Industrial DIN Rail Power Supplies |
|
|
Supported PSUs: JL819A, JL820A and JL821A Supported 2 PSU with redundancy, non sharing |
||
|
See external PSU specification table for available PoE power |
||
|
Fans |
Fanless |
|
|
Physical Characteristics |
Dimensions |
(H) 160 mm x (W) 113 mm x (D) 162.9 mm (173.5 mm w/DIN Rail Bracket) [6.3" x 4.4" x 6.4"(6.8" w/DIN Rail Bracket)] |
|
Weight |
3.84 kg (8.46 lbs) |
|
|
Mounting And Enclosure |
Cable management kit included. 2‑post rack mounting kit included. 4‑post rack mounting kit available separately |
|
|
Additional Specifications |
CPU |
Dual Core ARM Cortex A9 @ 1016 Mhz |
|
Memory And Flash |
4 GB DDR3 32 GB eMMC |
|
|
Packet Buffer |
12.38MB (4.5MB Ingress/7.875MB Egress) |
|
|
Performance |
Model Switching Capacity |
up to 64 Gbps |
|
Model Throughput Capacity |
up to 46 Mpps |
|
|
Average Latency (LIFO-64-bytes packets) |
1 Gbps: 2.390μSec , 10 Gbps: 2.038μSec |
|
|
Switched Virtual Interfaces (dual stack) |
1G: 5.32 μSec 10G: 1.48 μSec 25G: 2.78 μSec 40G: 1.31 μSec 100G: 1.42 μSec |
|
|
IPv4 host table (ARP) |
756 |
|
|
IPv6 host table (ND) |
576 |
|
|
IPv4 unicast routes |
576 |
|
|
IPv6 unicast routes |
576 |
|
|
MAC Table Size |
8192 |
|
|
IGMP Groups |
512 |
|
|
MLD groups |
512 |
|
|
IPv4/IPv6/MAC ACL entries (ingress) |
256 / 128 / 256 |
|
|
Environment |
Operating temperature |
-40°C to 60°C, 0m/s (-40°F to 140°F, 0 LFM) -40°C to 70°C, 0.2m/s (-40°F to 158°F, 40 LFM) -34°C to 75°C, 1m/s (-29.2°F to 167°F, 200 LFM) |
|
Non-Operating Storage relative humidity |
5% to 95%, non-condensing |
|
|
Max Operating Altitude |
up to 4.2 km (13800 ft) Max |
|
|
Max non-operating Altitude |
4.6 km (15000 ft) Max |
|
|
Electrical Characteristics |
Frequency |
N/A |
|
AC voltage |
Refer to the PSU specification table |
|
|
DC Input Voltage |
54V (switch input voltage, provided by JL819A, JL820A, JL821A) |
|
|
Current |
JL820A- max 8A (360W PoE) JL819A, JL821A- max 4.4A (180W PoE) |
|
|
Maximum heat dissipation BTU/hr |
With JL819A PSU: 89 BTU/hr at 230V - Room temperature (25°C) With JL820A PSU: 95 BTU/hr at 230V - Room temperature (25°C) With JL821A PSU: 94 BTU/hr at 48V - Room temperature (25°C) |
|
|
Power Consumption (JL819A, JL820A- 230VAC) (JL821A- 48VDC) |
With JL819A PSU: Idle: 22W 100% Traffic Rate: 26W 100% Traffic Rate (w/ heater): 55W
With JL820A PSU: Idle: 24W 100% Traffic Rate: 28W 100% Traffic Rate (w/ heater): 57W
With JL821A PSU: Idle: 22W 100% Traffic Rate: 27W 100% Traffic Rate (w/ heater): 56W
*Heater will only turn on at extreme low temperature condition |
|
|
Safety |
Europe: EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN 62368-1, Ed.2:2014
North America: UL 62368-1, 2nd Edition CAN/CSA C22.2 No. 62368-1-14
Worldwide: IEC 60950-1:2005 Ed.2 + Am 1:2009 + A2:2013 IEC 62368-1:2014 EN/IEC 60825-1:2014 Class 1 UL/IEC 61010-2-201 GB 4943.1:2011 CNS 14336-1 K 60950-1 |
|
|
EMC |
Europe: EN 55011:2010/CISPR 11, Class A EN 55032:2015/CISPR 32, Class A EN 55035:2017/CISPR 35 EN 61000-3-2:2014, Class A EN 61000-3-3:2013
US: FCC CFR 47 Part 15: 2018 Class A
Canada: ICES-003 Class A
Japan: VCCI Class A
Taiwan (BSMI) CNS 13438 Class A
Korea KN 35:2015
Korea KN 32 Class A
Aus/NZ AS/NZS CISPR 32 Class A
Worldwide: VCCI Class A CISPR 11 Class A CISPR 22 Class A |
|
|
Lasers |
EN 60825-1:2007 / IEC 60825-1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories – Optical Transceivers only |
|
|
Industry Specific Compliance |
Industrial |
EN 61000-6-2 Industrial Immunity EN 61000-6-4 Industrial Emissions EN 61000-6-1 Light Industrial Immunity |
|
Power Substation |
IEEE 1613 Electric Power Stations Communications Networking EN/IEC 61850-3 Electric Substations Communications Networking |
|
|
Railway Application |
EN 50121-3-2 Railway - Apparatus for Rolling Stock EN 50121-4 Railway – Signaling and Telecommunications Apparatus EN 50155/IEC 60571 - Railway applications, Rolling stock, Electronic equipment |
|
|
Traffic Control System |
NEMA TS 2-2016 |
|
|
Protection Standard |
EN 60529 IP30 |
|
|
Immunity |
Generic |
EN 55035, CISPR 35, KN35 |
|
EN |
EN 55035, CISPR 35 |
|
|
ESD |
EN 61000-4-2 (air – 15kV, contact – 8kV) |
|
|
Radiated |
EN 61000-4-3 (10V/m UTP, 20V/m STP) |
|
|
EFT/Burst |
EN 61000-4-4 4kV (1kV UTP, 4kV STP) using: · JL819A, JL820A with SPD2-300-2P0-R surge protector · JL821A with SPD2-150-2P0-R surge protector needed. Without surge protector and STP: · JL819A or JL820A PSU: 2kV · JL821A PSU: 1kV |
|
|
Surge |
EN 61000-4-5 2kV/4kV(UTP) using: · JL819A, JL820A with SPD2-300-2P0-R surge protector · JL821A with SPD2-150-2P0-R surge protector
Without surge protector: · JL819A or JL820A PSU: 1kV/2kV · JL821A PSU: N/A |
|
|
Conducted |
EN 61000-4-6 (3Vrms UTP, 10Vrms STP) |
|
|
Power Frequency Magnetic Field |
EN 61000-4-8 (100A/m 1min,1000A/m 1sec) |
|
|
Damped Oscillatory Magnetic Field |
EN 61000-4-10 (100A/m) |
|
|
Conducted CM Disturbances |
EN 61000-4-16 (30V, Cont/300V, 1 sec) |
|
|
Ripple Immunity DC Power |
EN 61000-4-17 (10%) |
|
|
Damped Oscillatory Wave |
EN 61000-4-18 (2.5kV, 1MHz) |
|
|
Voltage Dips and interruptions |
EN 61000-4-29; EN 61000-4-11 (Level 3) |
|
|
Harmonics |
EN 61000-3-2, IEC 61000-3-2 |
|
|
Flicker |
EN 61000-3-3, IEC 61000-3-3 |
|
|
Dynamics |
Vibration |
IEC 60068-2-6 & 64 (operation & nonoperation) |
|
Shock |
IEC 60068-2-27 (Operational Shock, 30G, 18ms, Half-Sine) IEC 60068-2-27 (Non-operational Shock, 50G, 11ms, Trapezoidal) IEC 60068-2-31 (Non-operational Free Fall, 100mm) IEC 60068-2-31 (Non-operational Topple) |
|
|
Railway Application |
Compliance to EN 50155 (mounting) & IEC 61373 |
|
|
Mounting and Enclosure |
Mounts to JL822A (3U DIN-to-Rack Bracket, puchased separately) which allows the switch to be mounted in an EIA/TIA standard 19" telco rack. |
|
|
Switch can be directly installed on a DIN rail mounted to a suitable surface to withstand the weight of the switch and power supplies. |
||
|
DIN rail mounting (included). |
||
|
Can be mounted in 90-degree manner to present the cables exiting the side of the switch - see installation guide for details. |
||
|
Wire |
Power Input |
AWG 14 up to 2m |
|
Alarm connector |
AWG 18-16 |
|
|
PoE Budget |
User configurable PoE budget - If 2 external power supply units are used concurrently, please set according to PSU with lower PoE capacity.
JL819A Below ambient 50°C: 180W At ambient 60°C: 140W At ambient 70°C: 80W
JL820A Below ambient 50°C: 360W At ambient 60°C: 320W At ambient 70°C: 200W
JL821A With PSU input = 48V-55V DC Below ambient 50°C: 180W At ambient 60°C and 70°C: 150W
With PSU input = 24V DC Below ambient 70°C: 150W
With PSU input = 12V DC Below ambient 60°C: 60W At ambient 70°C: 50W
Does not support PSU Power Sharing. Refer to Installation & Getting Started Guide for the PoE budget setup. |
|
|
|
||
|

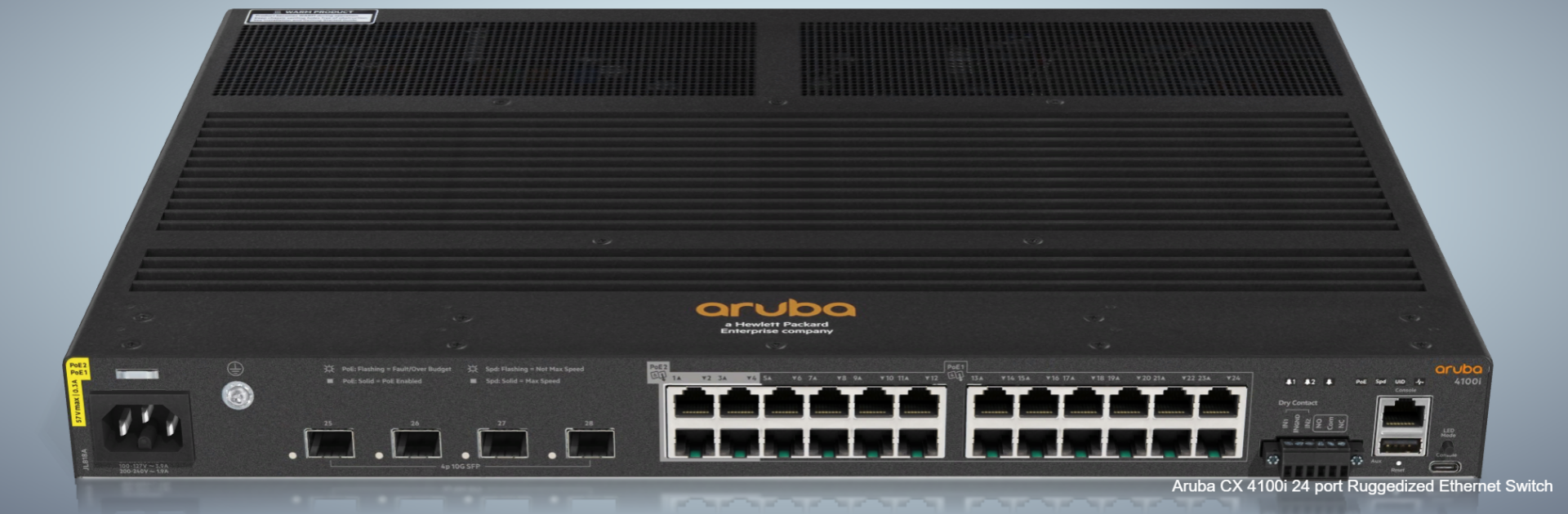

HPE Aruba Networking CX 4100i 24-port 1GbE (20-port Class 4 POE and 4-port Class 6 POE) 4-port SFP+ Switch (JL818A) |
||
|
Description |
4x ports 100M/1G BaseT Class 6 PoE ports supporting up to 60W per port 20x ports 100M/1G BaseT Class 4 PoE ports supporting up to 30W per port |
|
|
4x 1/10G SFP ports |
||
|
Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W) |
||
|
1x USB-C Console Port 1x RJ Console 1x USB Type A Host port 1x Alarm socket |
||
|
Power Supplies |
Fixed internal power supply (300W) |
|
|
240W of PoE Power (no de-rating) |
||
|
Fans |
Fanless |
|
|
Physical Characteristics |
Dimensions |
(H) 44 mm x (W) 444.5 mm x (D) 304.4 mm 1.73" x 17.5" x 12.0" |
|
Weight |
6.50 kg (14.33 lbs) |
|
|
Mounting And Enclosure |
Cable management kit included. 2‑post rack mounting kit included. 4‑post rack mounting kit available separately |
|
|
Additional Specifications |
CPU |
Dual Core ARM Cortex A9 @ 1016 Mhz |
|
Memory And Flash |
4 GB DDR3 32 GB eMMC |
|
|
Packet Buffer |
12.38MB (4.5MB Ingress/7.875MB Egress) |
|
|
Performance |
Model Switching Capacity |
up to 128 Gbps |
|
Model Throughput Capacity |
up to 95 Mpps |
|
|
Average Latency (LIFO-64-bytes packets) |
1 Gbps: 1.585μSec , 10 Gbps: 1.243μSec |
|
|
Switched Virtual Interfaces (dual stack) |
16 |
|
|
IPv4 host table (ARP) |
756 |
|
|
IPv6 host table (ND) |
576 |
|
|
IPv4 unicast routes |
576 |
|
|
IPv6 unicast routes |
576 |
|
|
MAC Table Size |
8192 |
|
|
IGMP Groups |
512 |
|
|
MLD groups |
512 |
|
|
IPv4/IPv6/MAC ACL entries (ingress) |
256 / 128 / 256 |
|
|
Environment |
Operating temperature |
-40°C to 60°C, 0m/s (-40°F to 140°F, 0 LFM) -40°C to 70°C, 0.2m/s (-40°F to 158°F, 40 LFM) -34°C to 75°C, 1m/s (-29.2°F to 167°F, 200 LFM) |
|
Non-Operating Storage relative humidity |
5% to 95%, non-condensing |
|
|
Max Operating Altitude |
up to 4.2 km (13800 ft) Max |
|
|
Max non-operating Altitude |
4.6 km (15000 ft) Max |
|
|
Electrical Characteristics |
Frequency |
50Hz/60Hz |
|
AC voltage |
100V-240V |
|
|
DC Input Voltage |
N/A |
|
|
Current |
max 3.9A/1.9A (240W PoE) |
|
|
Maximum heat dissipation BTU/hr |
117 BTU/hr at 230V - Room temperature (25°C) |
|
|
Power Consumption (JL819A, JL820A- 230VAC) (JL821A- 48VDC) |
Idle: 23W 100% Traffic Rate: 34W 100% Traffic Rate (w/ heater): 62W
*Heater will only turn on at extreme low temperature condition |
|
|
Safety |
Europe: EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN 62368-1, Ed.2:2014
North America: UL 62368-1, 2nd Edition CAN/CSA C22.2 No. 62368-1-14
Worldwide: IEC 60950-1:2005 Ed.2 + Am 1:2009 + A2:2013 IEC 62368-1:2014 EN/IEC 60825-1:2014 Class 1 UL/IEC 61010-2-201 GB 4943.1:2011 CNS 14336-1 K 60950-1 |
|
|
EMC |
Europe: EN 55011:2010/CISPR 11, Class A EN 55032:2015/CISPR 32, Class A EN 55035:2017/CISPR 35 EN 61000-3-2:2014, Class A EN 61000-3-3:2013
US: FCC CFR 47 Part 15: 2018 Class A
Canada: ICES-003 Class A
Japan: VCCI Class A
Taiwan (BSMI) CNS 13438 Class A
Korea KN 35:2015
Korea KN 32 Class A
Aus/NZ AS/NZS CISPR 32 Class A
Worldwide: VCCI Class A CISPR 11 Class A CISPR 22 Class A CISPR 32 Class A CISPR 24:2010 |
|
|
Lasers |
EN 60825-1:2007 / IEC 60825-1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories – Optical Transceivers only) |
|
|
Industry Specific Compliance |
Industrial |
EN 61000-6-2 Industrial Immunity EN 61000-6-4 Industrial Emissions EN 61000-6-1 Light Industrial Immunity |
|
Power Substation |
IEEE 1613 Electric Power Stations Communications Networking EN/IEC 61850-3 Electric Substations Communications Networking |
|
|
Railway Application |
EN 50121-3-2 Railway - Apparatus for Rolling Stock EN 50121-4 Railway – Signaling and Telecommunications Apparatus EN 50155/IEC 60571 - Railway applications, Rolling stock, Electronic equipment |
|
|
Traffic Control System |
NEMA TS 2-2016 |
|
|
Protection Standard |
EN 60529 IP30 |
|
|
Immunity |
Generic |
EN 55035, CISPR 35, KN35 |
|
EN |
EN 55035, CISPR 35 |
|
|
ESD |
EN 61000-4-2 (air – 15kV, contact – 8kV) |
|
|
Radiated |
EN 61000-4-3 (10V/m UTP, 20V/m STP) |
|
|
EFT/Burst |
EN 61000-4-4 4kV (1kV UTP, 4kV STP) |
|
|
Surge |
EN 61000-4-5 2kV/4kV(UTP) |
|
|
Conducted |
EN 61000-4-6 (3Vrms UTP, 10Vrms STP) |
|
|
Power Frequency Magnetic Field |
EN 61000-4-8 (100A/m 1min,1000A/m 1sec) |
|
|
Damped Oscillatory Magnetic Field |
EN 61000-4-10 (100A/m) |
|
|
Conducted CM Disturbances |
EN 61000-4-16 (30V, Cont/300V, 1 sec) |
|
|
Ripple Immunity DC Power |
EN 61000-4-17 (10%) |
|
|
Damped Oscillatory Wave |
EN 61000-4-18 (2.5kV, 1MHz) |
|
|
Voltage Dips and interruptions |
EN 61000-4-29; EN 61000-4-11 (Level 3) |
|
|
Harmonics |
EN 61000-3-2, IEC 61000-3-2 |
|
|
Flicker |
EN 61000-3-3, IEC 61000-3-3 |
|
|
Dynamics |
Vibration |
IEC 60068-2-6 & 64 (operation & nonoperation) |
|
Shock |
IEC 60068-2-27 (Operational Shock, 30G, 18ms, Half-Sine) IEC 60068-2-27 (Non-operational Shock, 50G, 11ms, Trapezoidal) IEC 60068-2-31 (Non-operational Free Fall, 100mm) IEC 60068-2-31 (Non-operational Topple) |
|
|
Railway Application |
Compliance to EN 50155 (mounting) & IEC 61373 |
|
|
Mounting and Enclosure |
Mounts to an EIA/TIA standard 19" telco rack. Mounting brackets included with product. |
|
|
Wire |
Power Input |
C15 Connector |
|
Alarm connector |
AWG 18-16 |
|
|
PoE Budget |
240W no derating. |
|
|
|
||
|
External Power Supply Specifications |
||
|
|
||
|
HPE Aruba Networking CX 4000i POE 54VDC 240W 100-240VAC DIN Power Supply (JL819A) |
||
|
Description |
Universal AC input voltage |
|
|
1x Input socket 1x Output socket |
||
|
Physical Characteristics |
Dimensions |
(H) 121 mm x (W) 85 mm x (D) 124.1 mm (4.76" x 3.35" x 4.88") |
|
Configuration Weight |
0.96 kg (2.12 lbs) |
|
|
Environment |
Operating temperature |
-40°C to 49°C no derating Vertical: 50°C de-rate power by 2.5% / °C Horizontal: 40°C de-rate power by 2.5% / °C |
|
Operating Relative Humidity |
5% to 95%, non-condensing |
|
|
Non-Operating |
-40°C to 85°C (-40°F to 185°F ) |
|
|
Non-Operating Storage relative humidity |
5% to 95%, non-condensing |
|
|
Max Operating Altitude |
up to 4.2 km (13800 ft) Max |
|
|
Max non-operating Altitude |
4.6 km (15000 ft) Max |
|
|
Electrical Characteristics |
Frequency |
50Hz/60Hz |
|
AC voltage |
100V-240V |
|
|
DC Input Voltage |
N/A |
|
|
Current |
6A/3A |
|
|
Dynamics |
Vibration |
IEC 60068-2-6 |
|
|
Shock |
IEC 60068-2-27 & 29 |
|
Mounting and Enclosure |
Mounts to JL822A (3U DIN-to-Rack Bracket, purchase separately) attached to an EIA-standard 19" telco rack or equipment cabinet which has DIN rail installed. |
|
|
DIN rail mounting. |
||
|
Vertical mounting only. |
||
|
Wire |
Power Input |
AWG 16-12 |
|
Power Output |
AWG 14 up to 2m |
|
|
PoE Budget |
Input operating range |
AC 100-240V |
|
PoE Power Budget below 50°C ambient (-40°C to 50°C) |
180W |
|
|
PoE Power Budget with 60°C ambient |
140W |
|
|
PoE Power Budget with 70°C ambient |
80W |
|
|
De-rating condition for PSU |
De-rating for Vertical Mounting Orientation > 50°C de-rate power by 2.5% / °C
De-rating for Horizontal Mounting Orientation > 40°C de-rate power by 2.5% / °C |
|
|
|
||
|
HPE Aruba Networking CX 4000i POE 54VDC 480W 100-240VAC DIN Power Supply (JL820A) |
||
|
Description |
Universal AC input voltage |
|
|
1x Input socket 1x Output socket |
||
|
Physical Characteristics |
Dimensions |
(H) 121 mm x (W) 144 mm x (D) 118.6 mm (4.76" x 5.67" x 4.67") |
|
Configuration Weight |
1.37 kg (3.02 lbs) |
|
|
Environment |
Operating temperature |
-40°C to 49°C no derating >50°C de-rate power by 2.5% / °C >70°C de-rate power by 5% / °C |
|
Operating Relative Humidity |
5% to 95%, non-condensing |
|
|
Non-Operating |
-40°C to 85°C (-40°F to 185°F ) |
|
|
Non-Operating Storage relative humidity |
5% to 95%, non-condensing |
|
|
Max Operating Altitude |
up to 4.2 km (13800 ft) Max |
|
|
Max non-operating Altitude |
4.6 km (15000 ft) Max |
|
|
Electrical Characteristics |
Frequency |
50Hz/60Hz |
|
AC voltage |
100V-240V |
|
|
DC Input Voltage |
N/A |
|
|
Current |
3.5A/1.3A |
|
|
Dynamics |
Vibration |
IEC 60068-2-6 |
|
|
Shock |
IEC 60068-2-27 & 29 |
|
Mounting and Enclosure |
Mounts to JL822A (3U DIN-to-Rack Bracket, purchase separately) attached to an EIA-standard 19" telco rack or equipment cabinet which has DIN rail installed. |
|
|
DIN rail mounting. |
||
|
Vertical mounting only. |
||
|
Wire |
Power Input |
AWG 16-10 |
|
Power Output |
AWG 14 up to 2m |
|
|
PoE Budget |
Input operating range |
AC 100-240V |
|
PoE Power Budget below 50°C ambient (-40°C to 50°C) |
360W |
|
|
PoE Power Budget with 60°C ambient |
320W |
|
|
PoE Power Budget with 70°C ambient |
200W |
|
|
De-rating condition for PSU |
De-rating for Vertical Mounting Orientation > 50°C de-rate power by 2.5% / °C, > 70°C de-rate power by 5% / °C |
|
|
HPE Aruba Networking CX 4000i POE 54VDC 240W 12-48VDC DIN Power Supply (JL821A) |
||
|
Description |
DC input voltage |
|
|
1x micro-USB interface for control and monitoring 1x LCD Display 1x Input socket 1x Output socket |
||
|
Physical Characteristics |
Dimensions |
(H) 115 mm x (W) 40 mm x (D) 110 mm (4.52" x 1.57" x 4.33") |
|
Configuration Weight |
0.4 kg (0.88 lbs) |
|
|
Environment |
Operating temperature |
-40°C to 70°C with derating |
|
Operating Relative Humidity |
5% to 95%, non-condensing |
|
|
Non-Operating |
-40°C to 80°C (-40°F to 176°F ) |
|
|
Non-Operating Storage relative humidity |
5% to 95%, non-condensing |
|
|
Max Operating Altitude |
up to 4 km (13123 ft) Max |
|
|
Max non-operating Altitude |
4.6 km (15000 ft) Max |
|
|
Electrical Characteristics |
Frequency |
N/A |
|
AC voltage |
N/A |
|
|
DC Input Voltage |
12V-48V nominal UL Certified to: 11V-55V |
|
|
Current |
12A |
|
|
Dynamics |
Vibration |
IEC 60068-2-6 |
|
Shock |
IEC 60068-2-27 |
|
|
Mounting and Enclosure |
Mounts to JL822A (3U DIN-to-Rack Bracket, purchase separately) attached to an EIA-standard 19" telco rack or equipment cabinet which has DIN rail installed. |
|
|
DIN rail mounting. |
||
|
Vertical mounting only. |
||
|
Wire |
Power Input |
AWG 12 |
|
Power Output |
AWG 14 up to 2m |
|
|
PoE Budget |
Input operating range |
Nominal to 12-48 VDC UL certified to 11-55 VDC |
|
PoE Power Budget below 50°C ambient (-40°C to 50°C) |
180W with input = 48V-55V DC 150W with input = 24V DC 60W with input = 12V DC |
|
|
PoE Power Budget with 60°C ambient |
150W with input = 48V-55V DC 150W with input = 24V DC 60W with input = 12V DC |
|
|
PoE Power Budget with 70°C ambient |
150W with input = 48V-55V DC 150W with input = 24V DC 50W with input = 12V DC |
|
|
De-rating condition for PSU |
- |
|
|
|
||
|
Accessory Specifications |
||
|
Specifications |
Description |
HPE Aruba Networking DIN Rail 3RU 19" Rack Mount Kit (JL822A) |
|
Physical Characteristics |
Dimensions |
(H) 133 mm x (W) 441 mm x (D) 189.5 mm (5.2" x 17.4" x 7.5") |
|
Configuration Weight |
1.29 kg (2.84 lbs) |
|
|
|
||
