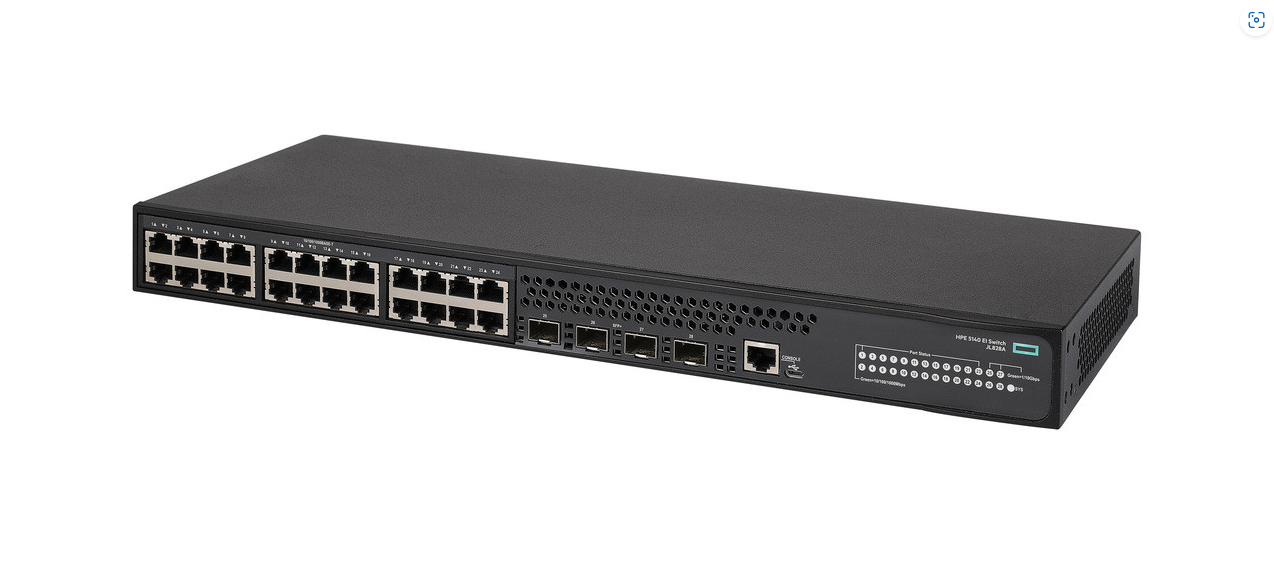

HPE FlexNetwork 5140 24G 4SFP+ EI Switch (JL828A) |
||
|
I/O ports and slots |
24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
|
|
4 SFP+ fixed 1000/10000 SFP+ ports |
||
|
Additional ports and slots |
1 RJ-45 serial console port |
|
|
Physical characteristics |
Dimensions |
17.32(w) x 6.3(d) x 1.72(h) in (44 x 16 x 4.36 cm) (1U height) |
|
Weight |
5.5 lb (2.5 kg) |
|
|
Memory and processor |
512 MB SDRAM, 256 MB flash |
|
|
Mounting and enclosure |
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (Rack Mount Kit R8M91A sold separately) |
|
|
Performance |
IPv6 Ready Certified |
|
|
1000 Mb Latency |
< 5 µs |
|
|
10 Gbps Latency |
< 3 µs |
|
|
Throughput |
95 Mpps |
|
|
Routing/Switching capacity |
128 Gbps |
|
|
Routing table size |
1024 entries |
|
|
MAC address table size |
16384 entries |
|
|
Environment |
Operating temperature |
23°F to 113°F (-5°C to 45°C) |
|
Operating relative humidity |
10% to 90%, noncondensing |
|
|
Non-operating/Storage temperature |
-40°F to 158°F (-40°C to 70°C) |
|
|
Non-operating/Storage relative humidity |
5% to 95%, noncondensing |
|
|
Acoustic |
High-speed fan: 36.8 dB; ISO 7779 |
|
|
Electrical characteristics |
Frequency |
50/60 Hz |
|
Maximum heat dissipation |
64/88 BTU/hr (67.52/92.84 kJ/hr) |
|
|
Voltage |
100 - 240 VAC, rated |
|
|
Current |
2 A |
|
|
Maximum power rating |
24 W |
|
|
Idle power |
19 W |
|
|
Notes: |
- Idle power is the actual power consumption of the device with no ports connected. - Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. |
|
|
Safety |
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance |
|
|
Emissions |
FCC Part 15 Subpart B CLASS A; ICES-003 CLASS A; VCCI-CISPR 32 CLASS A; EN 55032 CLASS; AS/NZS CISPR32 CLASS A; CISPR 24; EN 55024; EN 61000-3-2; EN 61000-3-3; ETSI EN 300 386; GB/T 9254; YD/T 993 |
|
|
Immunity |
Generic |
EN 55024 |
|
ESD |
EN300 386 |
|
|
Management |
IMC - Intelligent Management Center; SmartMC; command-line interface; Web browser; SNMP Manager |
|
|
Services |
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office. |
|
|
|
||
|
HPE FlexNetwork 5140 24G SFP 4SFP+ EI Switch (JL826A) |
||
|
I/O ports and slots |
16 SFP 100/1000 Mbps ports |
|
|
8 SFP dual-personality ports - 10/100/1000BASE-T RJ-45 or 100/1000BASE-X Combo Ports |
||
|
4 SFP+ fixed 1000/10000 SFP+ ports |
||
|
Additional ports and slots |
1 RJ-45 serial console port |
|
|
Power supplies |
2 power supply slots 1 minimum power supply required (ordered separately) |
|
|
Physical characteristics |
Dimensions |
17.32(w) x 14.17(d) x 1.72(h) in (44 x 36 x 4.36 cm) (1U height) |
|
Weight |
13.23 lb (6kg) |
|
|
Memory and processor |
512 MB SDRAM, 256 MB flash; |
|
|
Mounting and enclosure |
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (Rack Mount Kit R8M91A sold separately) |
|
|
Performance |
IPv6 Ready Certified |
|
|
1000 Mb Latency |
< 5 µs |
|
|
10 Gbps Latency |
< 3 µs |
|
|
Throughput |
95 Mpps |
|
|
Routing/Switching capacity |
128 Gbps |
|
|
Routing table size |
1024 entries |
|
|
MAC address table size |
16384 entries |
|
|
Environment |
Operating temperature |
23°F to 113°F (-5°C to 45°C) |
|
Operating relative humidity |
10% to 90%, noncondensing |
|
|
Non-operating/Storage temperature |
-40°F to 158°F (-40°C to 70°C) |
|
|
Non-operating/Storage relative humidity |
5% to 95%, noncondensing |
|
|
Acoustic |
Low-speed fan: 41.4 dB, High-speed fan: 47.7 dB; ISO 7779 |
|
|
Electrical characteristics |
Frequency |
50/60 Hz |
|
Maximum heat dissipation |
102/204 BTU/hr (107.61/215.22 kJ/hr), for AC Powered units. For DC powered units heat dissipation is 130 BTU/hr min, 232 BTU/hr max. |
|
|
Voltage |
100 - 240 VAC -48 to -60 VDC |
|
|
Current |
5 A |
|
|
Maximum power rating |
60 W |
|
|
Idle power |
30 W |
|
|
Notes: |
- Idle power is the actual power consumption of the device with no ports connected. - Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. - Power Ratings for AC Power Supply indicated above. - For DC input power, Idle Power is 38W and Max is 68W. - DC Max input current is 8A. Units are supplied without a power supply. Customer must buy 1 or 2 JD362B (AC) or JD366B (DC) power supply. |
|
|
Safety |
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance |
|
|
Emissions |
FCC Part 15 Subpart B CLASS A; ICES-003 CLASS A; VCCI-CISPR 32 CLASS A; EN 55032 CLASS; AS/NZS CISPR32 CLASS A; CISPR 24; EN 55024; EN 61000-3-2; EN 61000-3-3; ETSI EN 300 386; GB/T 9254; YD/T 993 |
|
|
Immunity |
Generic |
EN 55024 |
|
ESD |
EN300 386 |
|
|
Management |
IMC - Intelligent Management Center; SmartMC;command-line interface; Web browser; SNMP Manager |
|
|
Services |
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office. |
|
|
|
||
|
HPE FlexNetwork 5140 48G 4SFP+ EI Switch (JL829A) |
||
|
I/O ports and slots |
48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
|
|
4 SFP+ fixed 1000/10000 SFP+ ports |
||
|
Additional ports and slots |
1 RJ-45 serial console port |
|
|
Physical characteristics |
Dimensions |
17.32(w) x 9.04(d) x 1.72(h) in (44 x 23 x 4.36 cm) (1U height) |
|
Weight |
7.72 lb (3.5 kg) |
|
|
Memory and processor |
512 MB SDRAM, 256 MB flash |
|
|
Mounting and enclosure |
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (Rack Mount Kit R8M91A sold separately) |
|
|
Performance |
IPv6 Ready Certified |
|
|
1000 Mb Latency |
< 5 µs |
|
|
10 Gbps Latency |
< 3 µs |
|
|
Throughput |
131 Mpps |
|
|
Routing/Switching capacity |
176 Gbps |
|
|
Routing table size |
1024 entries |
|
|
MAC address table size |
16384 entries |
|
|
Environment |
Operating temperature |
23°F to 113°F (-5°C to 45°C) |
|
Operating relative humidity |
10% to 90%, noncondensing |
|
|
Non-operating/Storage temperature |
-40°F to 158°F (-40°C to 70°C) |
|
|
Non-operating/Storage relative humidity |
5% to 95%, noncondensing |
|
|
Acoustic |
Low-speed fan: 42.2 dB, High-speed fan: 49.3 dB; ISO 7779 |
|
|
Electrical characteristics |
Frequency |
50/60 Hz |
|
Maximum heat dissipation |
130/153 BTU/hr (137.15/161.42 kJ/hr), For AC powered units. For DC powered units heat dissipation is 130 BTU/hr min, 171 BTU/hr max |
|
|
Voltage |
100 - 240 VAC -48 to -60 VDC |
|
|
Current |
10 A |
|
|
Maximum power rating |
44 W |
|
|
Idle power |
38 W |
|
|
Notes: |
- Idle power is the actual power consumption of the device with no ports connected. - Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. - Power ratings for AC power indicated above. Current used is 5A Max when DC Power used. For DC input power, idle power is 38W, maximum DC power used is 50W. |
|
|
Safety |
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance |
|
|
Emissions |
FCC Part 15 Subpart B CLASS A; ICES-003 CLASS A; VCCI-CISPR 32 CLASS A; EN 55032 CLASS; AS/NZS CISPR32 CLASS A; CISPR 24; EN 55024; EN 61000-3-2; EN 61000-3-3; ETSI EN 300 386; GB/T 9254; YD/T 993 |
|
|
Immunity |
Generic |
EN 55024 |
|
ESD |
EN300 386 |
|
|
Management |
IMC - Intelligent Management Center; SmartMC; command-line interface; Web browser; SNMP Manager |
|
|
Services |
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office. |
|
|
|
||
|
HPE FlexNetwork 5140 24G PoE+ 4SFP+ (370W) EI Switch (JL827A ) |
||
|
I/O ports and slots |
24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) with 4 combo ports (RJ-45 or SFP); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
|
|
Additional ports and slots |
1 RJ-45 serial console port |
|
|
Physical characteristics |
Dimensions |
17.32(w) x 10.24(d) x 1.72(h) in (44 x 26 x 4.36 cm) (1U height) |
|
Weight |
17.64 lb (8 kg) |
|
|
Memory and processor |
512 MB SDRAM, 256 MB flash |
|
|
Mounting and enclosure |
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (Rack Mount Kit R8M91A sold separately) |
|
|
Performance |
IPv6 Ready Certified |
|
|
1000 Mb Latency |
< 5 µs |
|
|
10 Gbps Latency |
< 3 µs |
|
|
Throughput |
95 Mpps |
|
|
Routing/Switching capacity |
128 Gbps |
|
|
Routing table size |
1024 entries |
|
|
MAC address table size |
16384 entries |
|
|
Environment |
Operating temperature |
23°F to 113°F (-5°C to 45°C) |
|
Operating relative humidity |
10% to 90%, noncondensing |
|
|
Non-operating/Storage temperature |
-40°F to 158°F (-40°C to 70°C) |
|
|
Non-operating/Storage relative humidity |
5% to 95%, noncondensing |
|
|
Acoustic |
Low-speed fan: 44.4 dB, High-speed fan: 53.6 dB; ISO 7779 |
|
|
Electrical characteristics |
Frequency |
50/60 Hz |
|
|
Maximum heat dissipation |
102/1569 BTU/hr (107.61/1655.29 kJ/hr), for AC Power. For DC Power min heat dissipation is 85 BTU/hr and max heat dissipation is 2695 BTU/hr |
|
|
|
Voltage |
100 - 240 VAC, |
|
|
|
Current |
10 A |
|
|
|
Maximum power rating |
451 W |
|
|
|
Idle power |
30 W |
|
|
|
PoE power |
370 W PoE+ |
|
|
|
Notes: |
- Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE Power is the power supplied by the internal power supply. When supplemented with the use of an HPE RPS1600 Redundant Power System, up to 740 W of PoE+ can be supplied. - Max current rating for DC power is 25A. AC Input power is 30W typical, and 460W max(including 370W PoE+ consumption. DC Input voltage range is -54 to -57VDC. Total DC input power is 25W Typical and 790W with 740W PoE+ Power consumption. DC Input voltage range is -54VDC to -57VDC. DC Input Source is the HPE RPS1600. |
||
|
Safety |
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance |
||
|
Emissions |
FCC Part 15 Subpart CLASS A; ICES-003 CLASS A; VCCI-CISPR 32 CLASS A; EN 55032 CLASS; AS/NZS CISPR32 CLASS A; CISPR 24; EN 55024; EN 61000-3-2; EN 61000-3-3; ETSI EN 300 386; GB/T 9254; YD/T 993 |
||
|
Immunity |
Generic |
EN 55024 |
|
|
ESD |
EN300 386 |
||
|
Management |
IMC - Intelligent Management Center; SmartMC; command-line interface; Web browser; SNMP Manager. |
||
|
Services |
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office. |
||
|
|
|||
|
HPE FlexNetwork 5140 48G PoE+ 4SFP+ (370W) EI Switch (JL824A ) |
|||
|
I/O ports and slots |
48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
||
|
4 SFP+ fixed 1000/10000 SFP+ ports |
|||
|
Additional ports and slots |
1 RJ-45 serial console port |
||
|
Physical characteristics |
Dimensions |
17.32(w) x 14.17(d) x 1.72(h) in (44 x 36 x 4.36 cm) (1U height) |
|
|
Weight |
17.64 lb (8 kg) |
||
|
Memory and processor |
512 MB SDRAM, 256 MB flash |
||
|
Mounting and enclosure |
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (Rack Mount Kit R8M91A sold separately) |
||
|
Performance |
IPv6 Ready Certified |
|||
|
1000 Mb Latency |
< 5 µs |
|||
|
10 Gbps Latency |
< 3 µs |
|||
|
Throughput |
131 Mpps |
|||
|
Routing/Switching capacity |
176 Gbps |
|||
|
Routing table size |
1024 entries |
|||
|
MAC address table size |
16384 entries |
|||
|
Environment |
Operating temperature |
23°F to 113°F (-5°C to 45°C) |
||
|
Operating relative humidity |
10% to 90%, noncondensing |
|||
|
Non-operating/Storage temperature |
-40°F to 158°F (-40°C to 70°C) |
|||
|
Non-operating/Storage relative humidity |
5% to 95%, noncondensing |
|||
|
Acoustic |
Low-speed fan: 43.5 dB, High-speed fan: 52.8 dB; ISO 7779 |
|||
|
Electrical characteristics |
Frequency |
50/60 Hz |
||
|
Maximum heat dissipation |
160/1671 BTU/hr (168.8/1762.91 kJ/hr), for AC power. For DC power min heat dissipation is 147 BTU/hr and 3037 BTU/hr max. |
|||
|
Voltage |
100 - 240 VAC -54 to -57 VDC |
|||
|
Current |
10 A |
|||
|
Maximum power rating |
478 W |
|||
|
Idle power |
47 W |
|||
|
PoE power |
370 W PoE+ |
|||
|
Notes: |
- Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE Power is the power supplied by the internal power supply. When supplemented with the use of an HPE RPS1600 Redundant Power System, up to 740 W of PoE+ can be supplied. - Max current rating for DC power is 25A. AC Input power is 47W typical, and 490W max(including 370W PoE+ consumption. DC Input voltage range is -54 to -57VDC. Total DC input power is 43W typical and 890W with 800W PoE+ Power consumption. DC Input voltage range is -54VDC to -57VDC. DC Input Source is the HPE RPS1600. |
|||
|
Safety |
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance |
|||
|
Emissions |
FCC Part 15 Subpart B CLASS A; ICES-003 CLASS A; VCCI-CISPR 32 CLASS A; EN 55032 CLASS; AS/NZS CISPR32 CLASS A; CISPR 24; EN 55024; EN 61000-3-2; EN 61000-3-3; ETSI EN 300 386; GB/T 9254; YD/T 993 |
|||
|
Immunity |
Generic |
EN 55024 |
||
|
ESD |
EN300 386 |
|||
|
Management |
IMC - Intelligent Management Center; SmartMC; command-line interface; Web browser; SNMP Manager |
|||
|
Services |
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office. |
|||
|
|
||||
|
HPE FlexNetwork 5140 24G PoE+ 2SFP+ 2XGT (370W) EI Switch (JL823A ) |
||||
|
I/O ports and slots |
24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: Ports 1-24 support 10BASE-T/100BASE-TX, 1000BASE-T (full only) |
|||
|
2 SFP+ fixed 1000/10000 SFP+ ports |
||||
|
2X1/2.5/5/10G BASE-T ports |
||||
|
Additional ports and slots |
1 RJ-45 serial console port |
|||
|
Physical characteristics |
Dimensions |
17.32(w) x 12.6(d) x 1.72(h) in (44 x 32 x 4.36 cm) (1U height) |
||
|
Weight |
9.92 lb (4.5 kg) |
|||
|
Memory and processor |
512 MB SDRAM, 256 MB flash |
|||
|
Mounting and enclosure |
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (Rack Mount Kit R8M91A sold separately) |
|||
|
Performance |
IPv6 Ready Certified |
|||
|
1000 Mb Latency |
< 5 µs |
|||
|
10 Gbps Latency |
< 3 µs |
|||
|
Throughput |
95 Mpps |
|||
|
Routing/Switching capacity |
128 Gbps |
|||
|
Routing table size |
1024 entries |
|||
|
MAC address table size |
16384 entries |
|||
|
Environment |
Operating temperature |
23°F to 122°F (-5°C to 50°C) |
||
|
Operating relative humidity |
10% to 90%, noncondensing |
|||
|
Non-operating/Storage temperature |
-40°F to 158°F (-40°C to 70°C) |
|||
|
Non-operating/Storage relative humidity |
5% to 95%, noncondensing |
|||
|
Acoustic |
Low-speed fan: 44.4 dB, High-speed fan: 52.8 dB; ISO 7779 |
|||
|
Electrical characteristics |
Frequency |
50/60 Hz |
||
|
Maximum heat dissipation |
83.6/1433 BTU/hr (88.2/1511.9 kJ/hr) |
|||
|
Voltage |
100 - 240 VAC |
|||
|
Current |
10 A |
|||
|
Maximum power rating |
420 W |
|||
|
Idle power |
24.5 W |
|||
|
PoE power |
370 W PoE+ |
|||
|
Notes: |
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE Power is the power supplied by the internal power supply. |
|||
|
Safety |
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance |
|||
|
Emissions |
FCC Part 15 Subpart CLASS A; ICES-003 CLASS A; VCCI-CISPR 32 CLASS A; EN 55032 CLASS; AS/NZS CISPR32 CLASS A; CISPR 24; EN 55024; EN 61000-3-2; EN 61000-3-3; ETSI EN 300 386; GB/T 9254; YD/T 993 |
|||
|
Immunity |
Generic |
EN 55024 |
||
|
ESD |
EN300 386 |
|||
|
Management |
IMC - Intelligent Management Center; SmartMC; command-line interface; Web browser; SNMP Manager. |
|||
|
Services |
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office. |
|||
|
|
||||
|
HPE FlexNetwork 5140 48G PoE+ 2SFP+ 2XGT (370W) EI Switch (JL825A ) |
||||
|
I/O ports and slots |
48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
|||
|
2 SFP+ fixed 1000/10000 SFP+ ports |
||||
|
2X1/2.5/5/10G BASE-T ports |
||||
|
Additional ports and slots |
1 RJ-45 serial console port |
|||
|
Physical characteristics |
Dimensions |
17.32(w) x 12.6(d) x 1.72(h) in (44 x 32 x 4.36 cm) (1U height) |
||
|
Weight |
13.23 lb (6 kg) |
|||
|
Memory and processor |
512 MB SDRAM, 256 MB flash |
|||
|
Mounting and enclosure |
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (Rack Mount Kit R8M91A sold separately) |
|||
|
Performance |
IPv6 Ready Certified |
|||
|
1000 Mb Latency |
< 5 µs |
|||
|
10 Gbps Latency |
< 3 µs |
|||
|
Throughput |
131 Mpps |
|||
|
Routing/Switching capacity |
176 Gbps |
|||
|
Routing table size |
1024 entries |
|||
|
MAC address table size |
16384 entries |
|||
|
Environment |
Operating temperature |
23°F to 122°F (-5°C to 50°C) |
||
|
Operating relative humidity |
10% to 90%, noncondensing |
|||
|
Non-operating/Storage temperature |
-40°F to 158°F (-40°C to 70°C) |
|||
|
Non-operating/Storage relative humidity |
5% to 95%, noncondensing |
|||
|
Acoustic |
Low-speed fan: 43.5 dB, High-speed fan: 52.8 dB; ISO 7779 |
|||
|
Electrical characteristics |
Frequency |
50/60 Hz |
|
Maximum heat dissipation |
117.7/1467 BTU/hr (124/1547.77 kJ/hr) |
|
|
Voltage |
100 - 240 VAC |
|
|
Current |
10 A |
|
|
Maximum power rating |
430 W |
|
|
Idle power |
34.5 W |
|
|
PoE power |
370 W PoE+ |
|
|
Notes: |
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE Power is the power supplied by the internal power supply. |
|
|
Safety |
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance |
|
|
Emissions |
FCC Part 15 Subpart CLASS A; ICES-003 CLASS A; VCCI-CISPR 32 CLASS A; EN 55032 CLASS; AS/NZS CISPR32 CLASS A; CISPR 24; EN 55024; EN 61000-3-2; EN 61000-3-3; ETSI EN 300 386; GB/T 9254; YD/T 993 |
|
|
Immunity |
Generic |
EN 55024 |
|
ESD |
EN300 386 |
|
|
Management |
IMC - Intelligent Management Center; SmartMC; command-line interface; Web browser; SNMP Manager. |
|
|
Services |
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office. |
|
|
|
||
|
HPE FlexNetwork 5140 8G 2SFP 2GT Combo EI Switch (R8J42A ) |
||
|
I/O ports and slots |
8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: Ports 1-8 support 10BASE-T/100BASE-TX, 1000BASE-T (full only) |
|
|
2 SFP fixed 1GbE ports |
||
|
2 GT ports |
||
|
Additional ports and slots |
1 RJ-45 serial console port |
|
|
Physical characteristics |
Dimensions |
10.47(w) x 6.3(d) x 1.72(h) in (26.6 x 16 x 4.36 cm) (1U height) |
|
Weight |
3.3 lb (1.5 kg) |
|
|
Memory and processor |
512 MB SDRAM, 256 MB flash |
|
|
Mounting and enclosure |
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (Rack Mount Kit R8M91A sold separately) |
|
|
Performance |
IPv6 Ready Certified |
|
|
1000 Mb Latency |
< 5 µs |
|
|
10 Gbps Latency |
< 3 µs |
|
|
Throughput |
18 Mpps |
|
|
Routing/Switching capacity |
24 Gbps |
|
|
Routing table size |
1024 entries |
|
|
MAC address table size |
16384 entries |
|
|
Environment |
Operating temperature |
23°F to 122°F (-5°C to 50°C) |
|
|
|
Operating relative humidity |
10% to 90%, noncondensing |
|
||
|
Non-operating/Storage temperature |
-40°F to 158°F (-40°C to 70°C) |
|
||
|
Non-operating/Storage relative humidity |
5% to 95%, noncondensing |
|
||
|
Acoustic |
High-speed fan: 36.8 dB; ISO 7779 |
|
||
|
Electrical characteristics |
Frequency |
50/60 Hz |
||
|
Maximum heat dissipation |
27.3/51.2 BTU/hr (28.8/54 kJ/hr) |
|||
|
Voltage |
100 - 240 VAC |
|||
|
Current |
10 A |
|||
|
Maximum power rating |
15 W |
|||
|
Idle power |
8 W |
|||
|
Notes: |
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE Power is the power supplied by the internal power supply. |
|||
|
Safety |
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance |
|||
|
Emissions |
FCC Part 15 Subpart CLASS A; ICES-003 CLASS A; VCCI-CISPR 32 CLASS A; EN 55032 CLASS; AS/NZS CISPR32 CLASS A; CISPR 24; EN 55024; EN 61000-3-2; EN 61000-3-3; ETSI EN 300 386; GB/T 9254; YD/T 993 |
|||
|
Immunity |
Generic |
EN 55024 |
||
|
ESD |
EN300 386 |
|||
|
Management |
IMC - Intelligent Management Center; SmartMC; command-line interface; Web browser; SNMP Manager. |
|||
|
Services |
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office. |
|||
|
|
||||
|
HPE FlexNetwork 5140 24G 2SFP+ 2XGT EI Switch (R8J41A) |
||||
|
I/O ports and slots |
24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: Ports 1-24 support 10BASE-T/100BASE-TX, 1000BASE-T (full only) |
|||
|
2 SFP+ fixed 1000/10000 SFP+ ports |
||||
|
2X1/2.5/5/10G BASE-T ports |
||||
|
Additional ports and slots |
1 RJ-45 serial console port |
|||
|
Physical characteristics |
Dimensions |
17.32(w) x 6.3(d) x 1.72(h) in (44 x 16 x 4.36 cm) (1U height) |
||
|
Weight |
5.51 lb (2.5 kg) |
|||
|
Memory and processor |
512 MB SDRAM, 256 MB flash |
|||
|
Mounting and enclosure |
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (Rack Mount Kit R8M91A sold separately) |
|||
|
Performance |
IPv6 Ready Certified |
|||||
|
1000 Mb Latency |
< 5 µs |
|||||
|
10 Gbps Latency |
< 3 µs |
|||||
|
Throughput |
95 Mpps |
|||||
|
Routing/Switching capacity |
128 Gbps |
|||||
|
Routing table size |
1024 entries |
|||||
|
MAC address table size |
16384 entries |
|||||
|
Environment |
Operating temperature |
23°F to 122°F (-5°C to 50°C) |
||||
|
Operating relative humidity |
10% to 90%, noncondensing |
|||||
|
Non-operating/Storage temperature |
-40°F to 158°F (-40°C to 70°C) |
|||||
|
Non-operating/Storage relative humidity |
5% to 95%, noncondensing |
|||||
|
Acoustic |
Low-speed fan: 41.4 dB, High-speed fan: 47.7 dB; ISO 7779 |
|||||
|
Electrical characteristics |
Frequency |
50/60 Hz |
||||
|
Maximum heat dissipation |
49.5/112.6 BTU/hr (52.2/118.8 kJ/hr) |
|||||
|
Voltage |
100 - 240 VAC |
|||||
|
Current |
10 A |
|||||
|
Maximum power rating |
33 W |
|||||
|
Idle power |
14.5 W |
|||||
|
Notes: |
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. PoE Power is the power supplied by the internal power supply. |
|||||
|
Safety |
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance |
|||||
|
Emissions |
FCC Part 15 Subpart CLASS A; ICES-003 CLASS A; VCCI-CISPR 32 CLASS A; EN 55032 CLASS; AS/NZS CISPR32 CLASS A; CISPR 24; EN 55024; EN 61000-3-2; EN 61000-3-3; ETSI EN 300 386; GB/T 9254; YD/T 993 |
|||||
|
Immunity |
Generic |
EN 55024 |
||||
|
ESD |
EN300 386 |
|||||
|
Management |
IMC - Intelligent Management Center; SmartMC; command-line interface; Web browser; SNMP Manager. |
|||||
|
Services |
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office. |
|||||
